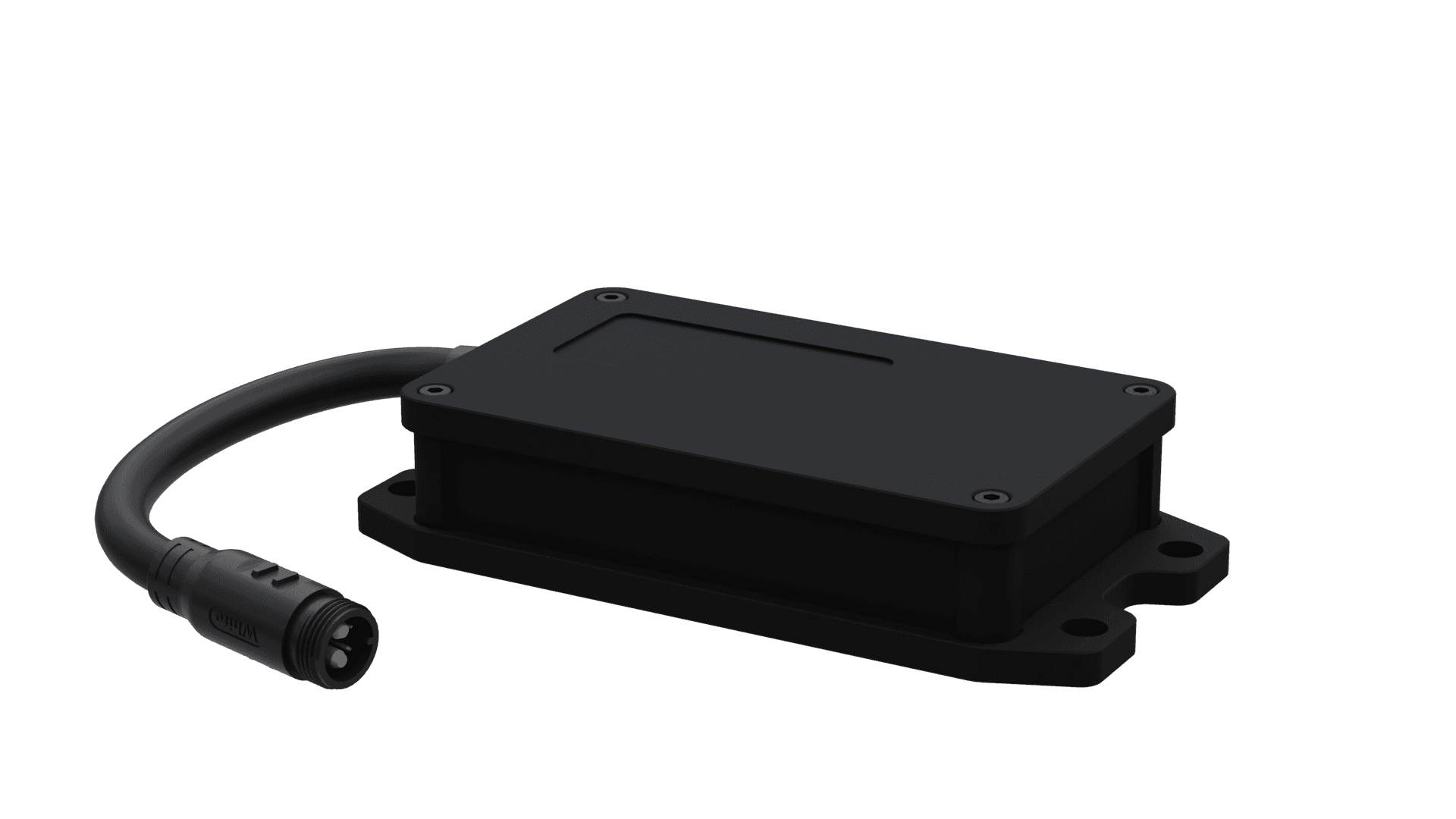

Heat Dissipation Unit
Movaria Powertrain
hdu-00
The Heat Dissipation Unit (HDU), commonly known as a "brake chopper," plays a crucial role in protecting the system by converting excess energy into heat. This process helps to mitigate voltage spikes that can occur during recuperation, particularly when dealing with a fully charged, overheated, or unbalanced battery. To enhance safety, the HDU is equipped with a continuous temperature monitoring feature that keeps track of its housing temperature. This ensures the protection of both the unit and its users from overheating and potential burns.
Technical Specifications
16,4 kJ
Max. Engergy (without cooling @ 20°C
24-60V
Supply Voltage Range
10 A
Max. Current
250 W
Peak Power Input
Certification:
EN-15194:2017
The HDU is fully compliant with EN15194, meeting all safety and power requirements.
EN-ISO-13849
The HDU complies with the ISO 13849 safety standard when used in conjunction with a Movaria motor controller, ensuring a robust and secure operation that meets the PLc set by the standard.
Machinery Directive
The HDU complies with the EU Machinery Directive (incomplete machine), ensuring adherence to all relevant safety and performance standards. We can provide the Declaration of Incorporation upon request.
